Low Pressure Gas-liquid Segregator
QQ咨询Low Pressure Gas-liquid Segregator

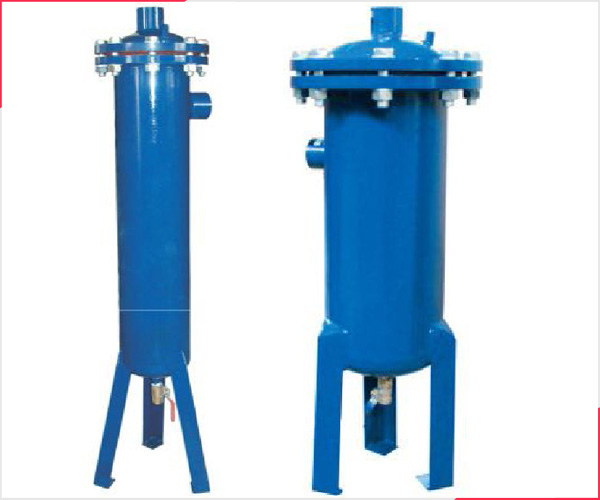

The oil-water separator is a separation device that integrates cyclone separation and secondary filtration of condensing filtration. It intercepts oil and water in compressed air. The interior uses stainless steel wire mesh coalescing packing and the shell is made of steel welded tank structure. Its principle It uses the organic combination of whirlwind and stainless steel wire mesh to capture fog. It also uses direct interception, inertial collision, Brownian diffusion and condensation to effectively remove dust, water and oil mist in compressed air. It has a large capacity and water output. Large oil removal, wide range of working conditions, economic and practical characteristics. It can be used as the oil and water separation of the general air compressor, and can also be installed in the dryer as a pretreatment for compressed air drying.
Oil-water separator related parameters
| 型号 | YD-3 | YD-6 | YD-10 | YD-15 | YD-20 | YD-30 | YD-40 | YD-60 | YD-80 | YD-100 | YD-150 | YD-200 | YD-350 |
| 处理流量Nm³/min | 3 | 6 | 10 | 15 | 20 | 30 | 40 | 60 | 80 | 100 | 150 | 200 | 350 |
| 接口管径 | 1 1/2" | 1 1/2" | 2" | 2 1/2" | 2 1/2" | 3" | 4" | 4" | 5" | 6" | 8" | 10" | 12" |
| 过滤孔径um | ≤5um ≤3um | ||||||||||||
| 滤油精度PPM | ≤10 | ||||||||||||
| 工作压力范围MPA | 0.4-1.4, 1.4-8.0 | ||||||||||||
| 工作损失MPA | ≤0.005 | ||||||||||||
| 工作湿度℃ | 0-80℃ | ||||||||||||
| 降水率（液态水） | ≤99% | ||||||||||||
