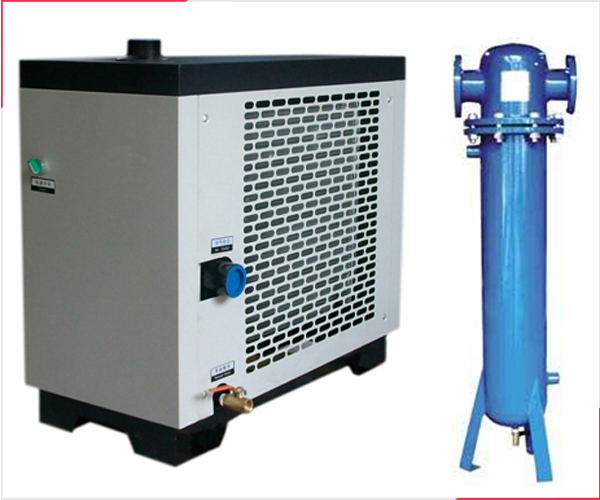

Air-cooled Pre-cooler

马上询价

QQ咨询
想了解更多玉达空压机产品详情，请直接联系我们，我们将给您最详细的设备方案和最优惠的价格！

所属分类

Low Pressure Style

数量

-

+

库存:

0

 33434343 222

1

产品描述

参数

Air-cooled Pre-cooler

Compressed air aftercooler has air-cooled type and water-cooled type. Aftercooler can reduce the inlet air temperature by an air-to-air exchanger with fan motor, or by an air-to-water exchanger with special tube. The air-cooled type operation cost is low, but the air-to-air exchanger is dependent largely on the ambient temperature. The water-cooled type has highly efficient, and the air-to-water exchanger needs cooling water.

1. 风冷型

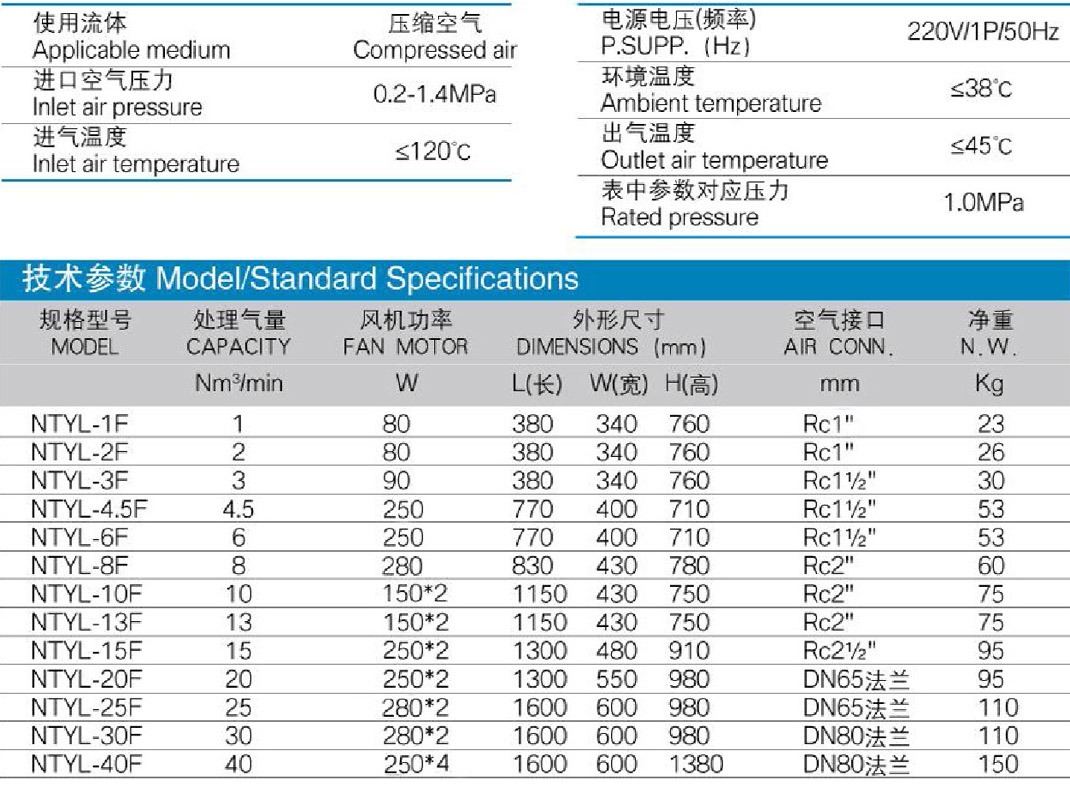

型号	YD-1F	YD-2F	YD-3F	YD-6F	YD-10F	YD-15F	YD-20F	YD-30F	YD-40F
	YD-1F	YD-2F	YD-3F	YD-6F	YD-10F	YD-15F	YD-20F	YD-30F	YD-40F
空气处理量Nm3/min	1	2	3	6	10	15	20	30	40
电源V	220
	220
进气压力Mpa	0.2~1.4,1.4~8.0
	0.2~1.4,1.4~8.0
进气温度℃	≤120
出气温度℃	≤45
环境温度℃	≤35
风机马达W	90	90	90	120	180	2x90	2x120	4x90	4x120
	90	90	90	120	180	2x90	2x120	4x90	4x120
空气接口管径	3月4日	1’’	11/2’’	11/2’’	2’’	21/2’’	21/2’’	3’’	4’’
2. 水冷型
型号	空气处理量（Nm3/min）	进气压力Mpa	进气温度℃	出气温度℃	冷却水压力Mpa	冷却水温度℃	冷却水循环量m3/mincooling	冷却管径	空气接口管径
YD-1W	1	0.2~1.4,1.4~8.0	≤150	≤45	0.2~0.4	≤32	0.7	1/2’’	3/4’’
YD-3W	3						1.2	1’’	11/2’’
YD-6W	6						2.5	1’’	11/2’’
YD-10W	10						3.6	11/2’’	2’’
YD-15W	15						5	11/2’’	21/2’’
YD-20W	20						8.5	2’’	21/2’’
YD-30W	30						13	2’’	3’’
YD-40W	40						18	21/2’’	4’’
YD-60W	60						25	21/2’’	4’’
YD-90W	90						32	3’’	5’’
YD-100W	100						40	3’’	6’’
YD-150W	150						50	3’’	8’’
YD-200W	200						76	4’’	10’’
