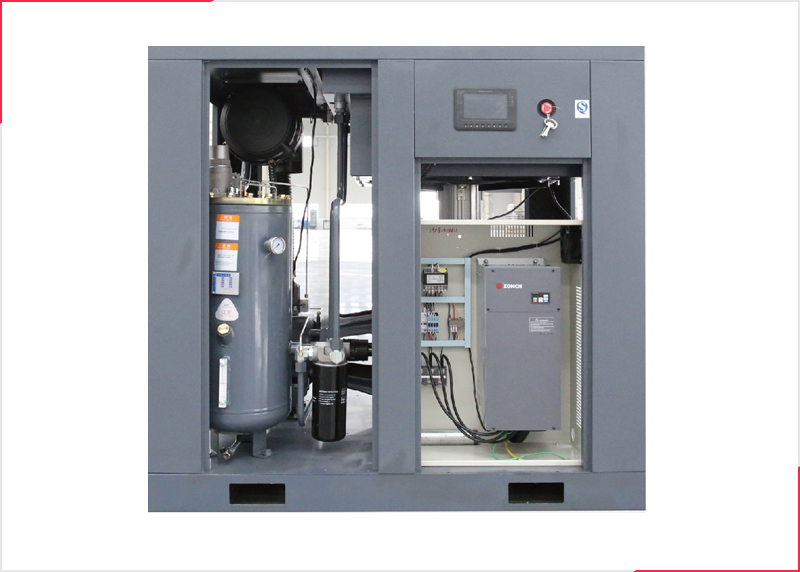

Variable-Frequency Screw Air Compressor

关注度: 6905

产品概要：

Every omdel has a corresponding frequency conversion compressor , which controls the air flow by changing the rotational speed of motor, making the air output and electricity consumption smoothly vary synchronously with the different air flow.When the air use quantity falls, the air supply decreases and then the electricity consumption for energy conservation, for capacity ranging from 2 to 60m3/min and discharge pressure from 0.5 to 1.3MPA,There are correspoonding models available to customers with different requirements.

马上询价

QQ咨询
想了解更多玉达空压机产品详情，请直接联系我们，我们将给您最详细的设备方案和最优惠的价格！

所属分类

Screw Air Compressor

数量

-

+

库存:

0



1

产品描述

参数

Every omdel has a corresponding frequency conversion compressor , which controls the air flow by changing the rotational speed of motor, making the air output and electricity consumption smoothly vary synchronously with the different air flow.When the air use quantity falls, the air supply decreases and then the electricity consumption for energy conservation, for capacity ranging from 2 to 60m3/min and discharge pressure from 0.5 to 1.3MPA,There are correspoonding models available to customers with different requirements.Variable frequency air compressor have the same good quality as other models, the quality frequency converter will further better the result of energy conseservation, with the help of the PID regulator disposed in a frequency converter, it can start up smoothly, it causes little impact on the power grid and generates great low-frequency start moment of current vector control and small running current,when the air use decreases,the compressors enter the sleeping status, saving considerable energy,Moreover , digital to analog conversion is highly accurate and the integration design features few fault points.

Long compressor compressor life:

Rotors are asymmetric in profile and backed up by ball bearings and roller bearings and operate at a low speed, thereby low in abrasion and maintenance and repair expenses and the bare compressor being long in service life.Helical gears can produce axial force to kill some acting force, which reduces the load of the bearing of bare compressor.

技术参数:

型号 Model	功率（Kw) Power	排气压力（Mpa) Air Capacity	排气量(m³/min) Air Capacity	噪音dB(A) Noise Level	出气口尺寸 Outoet size	外型(长×宽×高）mm Dimensions	重量(Kg) Weight	加油量（L） The amount of fuel
YDM-20A	15	0.7	2.5	64±2	G¾″	1050×750×1020	370	10
		0.8	2.3
		1.0	2.1
YDM-25A	18.5	0.7	3.2	66±2	G1″	1380×850×1180	490	18
		0.8	3.0
		1.0	2.7
		1.2	2.4
YDM-30A	22	0.7	3.8	67±2	G1″	1380×850×1180	510	18
		0.8	3.6
		1.0	3.2
		1.2	2.9
YDM-40A	30	0.7	5.3	69±2	G1″	1380×850×1180	560	20
		0.8	5.0
		1.0	4.5
		1.2	4.0
YDM-50A	37	0.7	6.8	71±2	G1½″	1250×1000×1340	710	24
		0.8	6.2
		1.0	5.6
		1.2	5.0
YDM-60A	45	0.7	7.4	72±2	G1½″	1350×1000×1340	730	24
		0.8	7.0
		1.0	6.3
		1.2	5.7
YDM-75A	55	0.7	10.5	74±2	G2″	1800×1250×1600	1200	52
		0.8	9.6
		1.0	8.5
		1.2	8.0
YDM-100A	75	0.7	13.4	75±2	G2″	1800×1250×1670	1340	52
		0.8	12.8
		1.0	11.2
		1.2	10.5
YDM-120A	90	0.7	16.0	76±2	G2″	1800×1250×1670	1420	52
		0.8	15.4
		1.0	13.6
		1.2	12.8
YDM-150A	110	0.7	21.0	78±2	G2½″	2500×1470×1842	2120	70
		0.8	19.8
		1.0	17.2
		1.2	16.5
YDM-175A	132	0.7	24.5	80±2	G2½″	2500×1470×1842	2200	70
		0.8	23.4
		1.0	20.6
		1.2	19.5
